DCP Series digital movie audio processors are developed for audio processing that matches digital movies. The system can provide a standard 6 (8 or 12) sound-channel output which satisfies the stereo needs of digital movies. Humanized computer-based interfacial operation has been adopted for the installation and testing of the system which can bring brevity and convenience to the operation of the system. The equipment has an ultrahigh signal-to-noise ratio and ultralow distortion, and features convenience, flexibility, high reliability, excellent performance and ect.

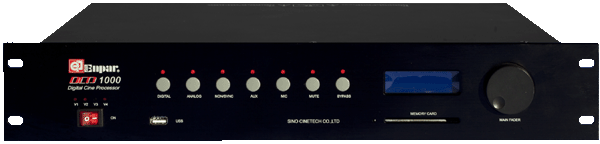

DCP Series digital movie audio processors include DCP800D,DCP1000,DCP2000 and DCP1300, 4 types altogether.
Functions and Features:
·Twenty-seven bands of 1/3oct equalizers at every sound channel other than the subwoofer sound channel
·Two-way tunable equalizer set for the subwoofer sound channel.
·Individual level default and specific functions of boot format at every input format
·Individual gain control, delay adjustment and phase control at 6/8/12 output channel
·Individual pink noise and sine wave generator (125Hz,500Hz,1kHz,5kHz10kHz)is adopted at 6/8/12 sound channel.
·Built-in individualized modules include backups and copying for all the settings.
·Built-in 10 types of Enpar brand main speaker frequency divider parameters of DCP1000 / DCP2000 type processors, which have the adjustment and storage function of frequency divider parameters.
Applications and characteristics of the input and output:
|
Model
|
DCP800D
|
DCP1000
|
DCP1300
|
||
|
Applications
|
Used for 2 K and 1.3 K digital movies
|
Used only for the 1.3K digital movies
|
|||
|
Input
|
Technical features
|
Optional 8-16channel AES-EBU digital input (D25 holed socket)
Asynchronous and auxiliary S/PDIF input with 6-channel decoder (RCA S/PDIF socket) Eight independent analog inputs (D25 holed socket) Asynchronous and auxiliary stereo line input, Optional 6-channel decoding (RCA socket) Used for microphone input of public radio system (Cannon socket) |
Two groups of optical fiber digital inputs, two groups of coaxial digital inputs
Optional 6-channel decoding Used for microphone input of public radio system |
||
|
Digital
|
4 sets of AES/EBU 32 ~ 96kHz 24bit D25 socket
|
32 ~ 96kHz 24bit OPTICAL fiber RCA socket
|
|||
|
Analog
|
300mV 20kΩ RCA socket, SOPTICAL fiber socket
|
|
|||
|
Microphone
|
20mV 2kΩ Cannon socket
|
20mV 2kΩ Cannon socket
|
|||
|
Output
|
Level
|
300mV 600Ω
|
|||
|
Level
|
D25 pin socket (8 ways)
|
3.81 Phoenix terminals (14 ways)
|
3.81 Phoenix terminals (6 ways)
|
||
|
Monitor
|
775mV 600Ω (Cannon socket)
|
775mV 600Ω (3.81 Phoenix terminals)
|
|||
|
Control Interface
|
10M ETHERNET, USB
|
||||
|
SNR
|
Analog
|
106dB (A weighted, 20Hz-20KHz)
|
|||
|
Digital
|
126dB(A weighted, 20Hz-20KHz)
|
126dB(A weighted, 20Hz-20KHz)
|
|||
|
Frequency Response
|
10~20KHz
|
||||
|
Power supply
|
Voltage
|
AC220V 50~60Hz
|
|||
|
Current
|
100mA
|
||||
|
Case size
|
80×483×290(mm)
|
80×483×290(mm)
|
|||
