PS4208 type dichotomy frequency main speakers system



· low-distortion sound waves guide tube, to guarantee tone quality plump
· Installation is simple and convenient
· single-track cinema design

PS4208 is designed for single-track cinemas.It is perfect for big-scale and medium-sized digital stereo movie halls with about 100~150 seats and projecting distance within 15m. The bass system is specially designed for the extension of digital movie low frequency response. It adopts the high efficiency, high power PW1504 low-pitch unit, precision and phase inversion design and close coupling of the 2 units, which improves the sound output efficiency and enhances the frequency range.. Treble system constants of PH2315 type small calibre biradial horn with a directional invariance in it and PD2109 type high frequency drive. The drive unit adopts phase equilibrium network, which can make the horn and drive with flat frequency cohesion and stable working condition.

Technical parameter
PS4208
Frequency response
40-16KHz(-6dB)
Coverage angles
90°×40°(H×V)
Directivity factor(Q)
12.6
Directivity index
10dB

Woffer
tweeter
Unit model
2×PW1502
 PD2109&PH2315
transducer
Φ 381 mm high efficiency low frequency speakers, Φ 50.5 mm KAPTON skeleton voice coil,Φ 156mm strontium qualitative magnets.
Φ44.5 mm titanium coating compression drive structure, KAPTON skeleton rectangular section copper coated aluminium wire voice coil,, Φ140 mm strontium qualitative magnets.
Nominal impedance
Sensitivity 1w/1m
100dB
116dB
Rated Input Power
500W
200W
Maximum input power
1000W
400W
Maximum SPL
130dB
142dB
Connection
2 metal connecting terminals, the biggest standard wire can be used is 6 mm2.
2 metal connecting terminals, the biggest standard wire can be used is 4 mm2.

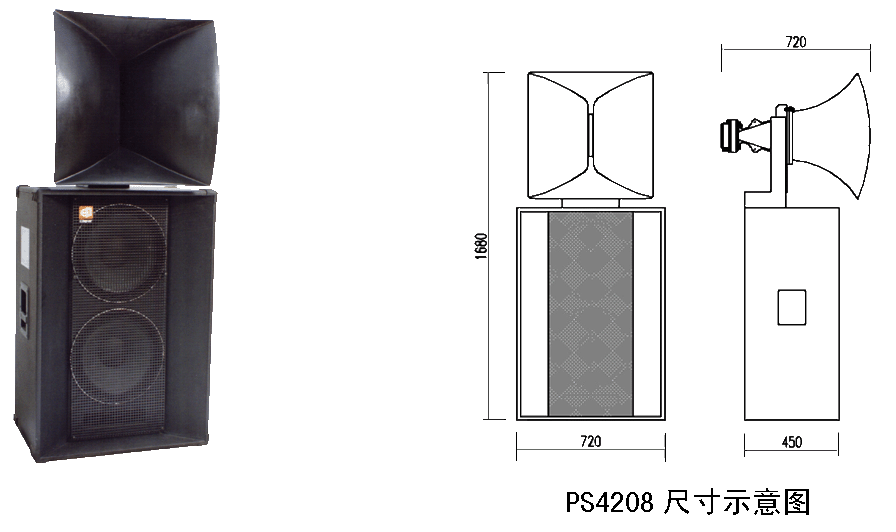

Dimensions
1680mm×720mm × 820mm (H×W×D)
Net weight
68kg

PS: [1] Maximum input power test meets IEC268-5 recommend standard, 50 Hz-20 KHz bandwidth, 6 db signal peak factor.
