· Dichotomy frequency surround speaker system
· It can connect more units by parallel output
· Level scattering angle is 100 degrees, vertical scattering angle is100 degrees
· It has a quick installation trestle for fast, simple and safe installation
· High power load bearing strength has optimized for the digital sound reproducing
· Loudspeakers box is made of high strength ABS materials, with compact structure and good performance of vibration control
· It has an adjustable hanger-bearing structure for simple installation, and a wide compass and smooth acoustic covering
CPS4284 is high-powered, high sensitivity dichotomy frequency surround speaker system with a loaded high-pitch horn. Its loudspeaker box is made of high-strength ABS materials, with compact structure and good performance of vibration control. It has an adjustable hanger-bearing structure for simple installation and has a wide compass and smooth acoustic covering, which can faithfully reproduce the atmosphere of the environmental sound in digital-sound movies. It will be the best choice for digital movie surround reproducing.
|
technical parameters
|
CPS4284
|
|
|
Frequency response
|
50-20KHz(-6dB)
|
|
|
Coverage angles
|
100 º×100 º (H×V)
|
|
|
|
Woffer
|
High frequency drive
|
|
Unit model
|
PW1005
|
PD2104
|
|
transducer
|
Φ 225 mm high efficiency low frequency speakers, Φ 50 mm KAPTON skeleton voice coil,, Φ 140mm strontium qualitative magnets.
|
Φ 25.5 mm titanium coating compression drive structure, KAPTON skeleton rectangular section copper coated aluminium wire voice coil,, Φ 85 mm strontium qualitative magnets.
|
|
Nominal impedance
|
8Ω
|
|
|
sensitivity 1w/1m
|
96dB
|
|
|
Rated Input Power
|
250W
|
|
|
Maximum input power
|
500W
|
|
|
Maximum SPL
|
123 dB
|
|
|
Connection
|
2 metal connecting terminals, the biggest standard wire is 6 mm2.
|
|
|

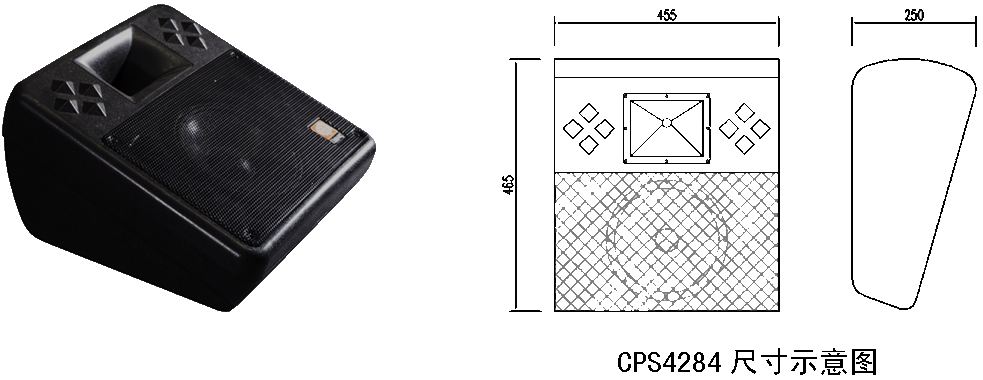

dimensions
|
465mm×455mm × 250mm
|
|
|
Net weight
|
12kg
|
|
PS:
1. All listed frequency ranges are measured in free sound field. (half space, 2 PI)
2. The pressure level can be calculated in 1 meter, the speaker is rated continuous power output, the signal source is pink noise, within the designated frequency range.
3. Maximum output power test meets IEC268-5 recommend standard, 50 Hz-20 KHz bandwidth, 6 dB signal peak factor.
