CPS4242 Subwoofer system
· High power
· High sensitivity
· Deep and massive bass;good low frequency response
· Simple and convenient installation
CPS4242 subwoofer system consists of a high power, high sensitivity and good low frequency response PW1801 low-pitch unit and close coupling of the 2 units, which improves the sound output efficiency. With the specially designed low frequency boxes and its deep and massive bass, it can make full play of the heart-stirring bass effect of digital sound movies.
|
technical parameters
|
CPS4242
|
|
Frequency response
|
25-500Hz(-6dB)
|
|
|
Woffer
|
|
Unit model
|
2×PW1801
|
|
transducer
|
Φ470 mm high efficiency low frequency speakers, Φ 100 mm KAPTON skeleton voice coil,, Φ 220 mm strontium qualitative magnets.
|
|
Nominal impedance
|
4Ω
|
|
sensitivity 1w/1m
|
102dB
|
|
Rated Input Power
|
800W
|
|
Maximum input power
|
1600W
|
|
Maximum SPL
|
134dB
|
|
Connection
|
2 groups (4pcs)metal connecting terminals, the biggest standard wire is 6 mm2.
|
|

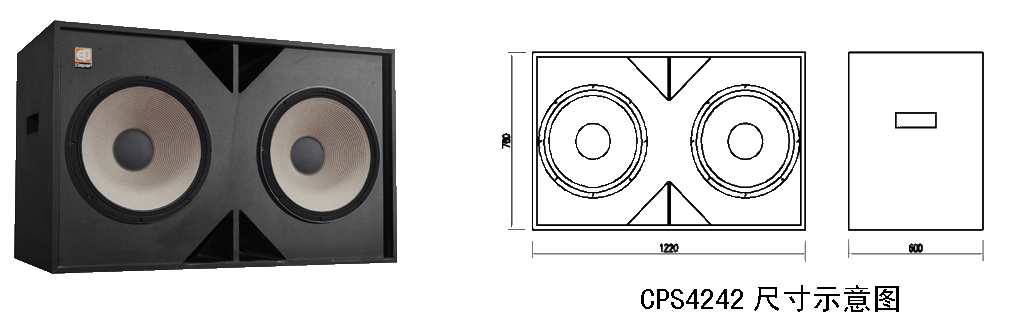

dimensions
|
760mm×1220mm ×600mm (H×W×D)
|
|
Net weight
|
92kg
|
PS: [1]Maximum output power test meets IEC268-5 recommend standard, 50 Hz-20 kHz bandwidth, 6 dB signal peak factor.
