CSA4601 dichotomy frequency Listening and Detecting Loudspeakers system

· Dichotomy frequency listening and detecting loudspeakers system
· connection is convenient, simple and safe
· It can be connected directly with movie stereo processors’ Listening and Detecting output
· The built-in power amplifier can adjust the volume

CSA4601 is mainly used for the movie stereo reproducing and monitoring in a movie projector room. The built-in power amplifier can adjust the volume and the acoustic covering is plump and smooth. It can be connected directly with movie stereo processors’ listening and detecting output.

Technical parameters
CPS4601
Frequency response
70-20KHz(-6dB)
 Coverage angles
100 º×100 º (H×V)

Woffer
High frequency drive
Unit model
PW619
PD2203
Transducer
Φ 180 mm high efficiency low frequency speakers, Φ 25.5 mm KAPTON skeleton voice coil,, Φ 115 mm strontium qualitative magnets.
Φ 25 mm titanium coating compression drive structure, KAPTON skeleton rectangular section copper coated aluminium wire voice coil,, Φ 70 mm strontium qualitative magnets.
Input Nominal impedance
600Ω
Rated Power
50W
Connection
TRS standard plug

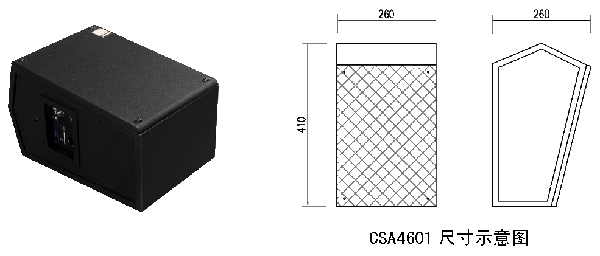

dimensions
410mm×260mm × 260mm (H×W×D)
Net weight
8kg
